PalmSens.Core
The most relevant parts of the PalmSens.Core library:
- PalmSens
-
All necessary classes and functions for performing measurements and doing analysis with PalmSens or EmStat.
- PalmSens.Comm
-
For Serial, USB or TCP communication with PalmSens or EmStat
- PalmSens.DataFiles
-
For saving and loading method and data files
- PalmSens.Devices
-
For handling communications and device capabilities
- PalmSens.Techniques
-
Contains all measurement techniques for PalmSens and EmStat. See this page for more information.
- PalmSens.Units
-
Contains a collection of units used by these libraries

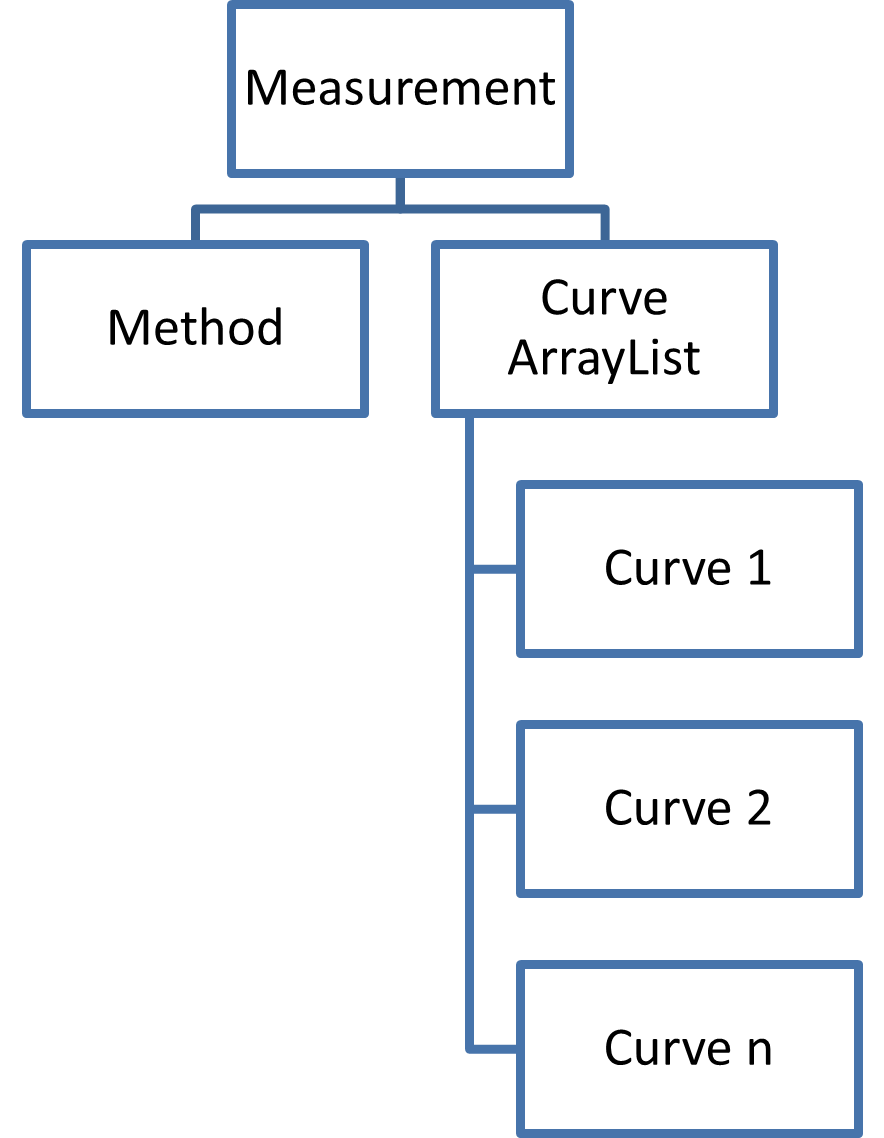

The basis for handling measurements is the PalmSens.Measurement class, or the PalmSens.Core.Simplified.Data.SimpleMeasurement class intthe simplified wrapper.
The measurement class contains all classes, functions, and parameters necessary for performing a measurement with a PalmSens or EmStat instrument.
A Measurement has one associated method and can contain multiple curves.
Curves are a representation of the data in the measurement used for plotting and analysis.

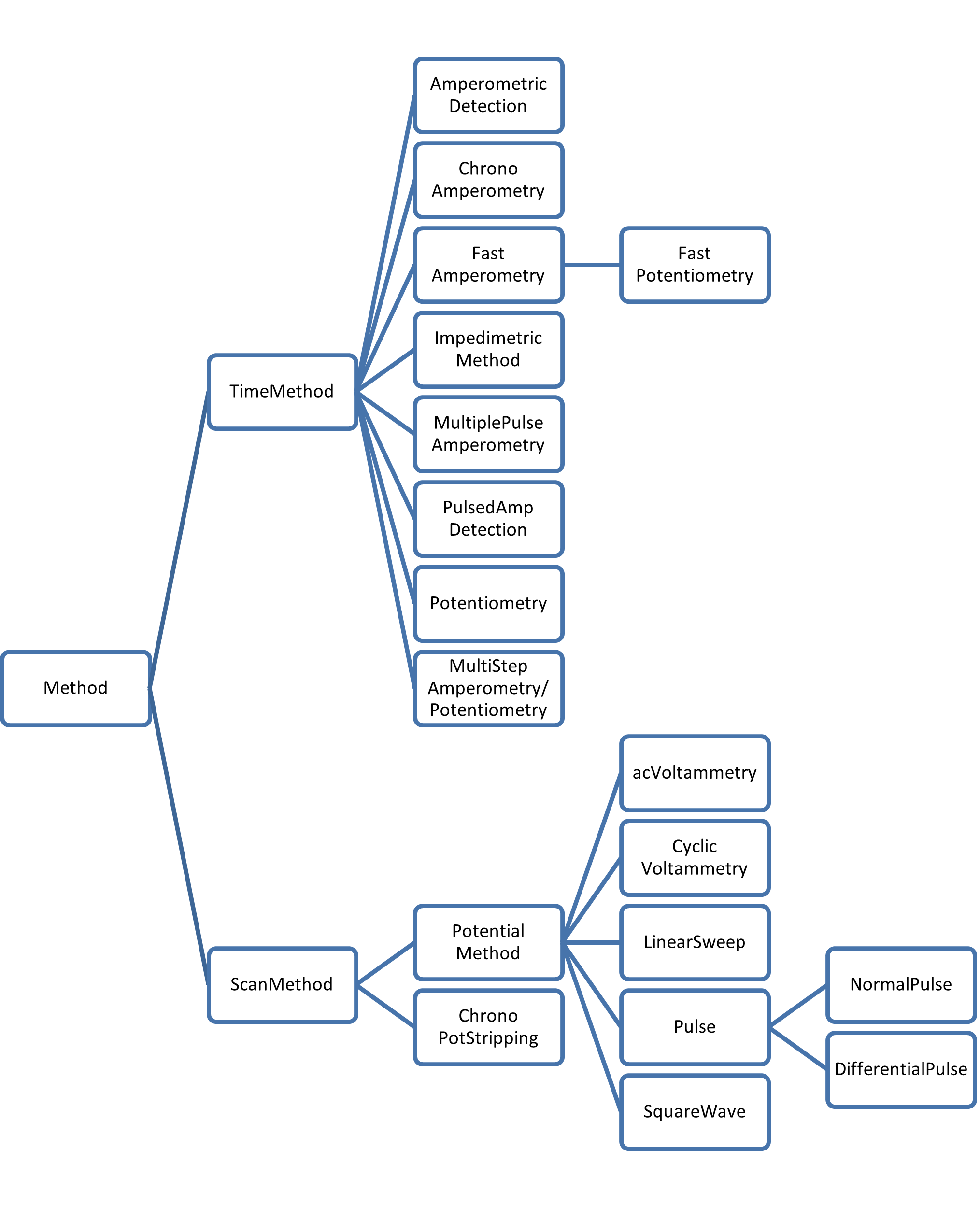

The following diagram shows the inheritance structure of the Method
classes:
